2901301 – 1,35 Ton ultra low profile service jack

In Stock

Description

1,35 TON

  • The longest (1,26 meter) ultra low profile jack in the market!
  • PU Wheels give easy and silent movement and protects the the workshop floor.
  • Unique Magic Lift design offers Super fast lifting speed with only 1 stroke to the lifting point.
  • Rubber lift pad prevents any scratching of vehicle chassis.
  • Soft foam handle protection prevents accidental damage to the vehicle’s bodywork.
  • Air vent valve plug automatically eliminates air in the hydraulic unit.
  • Overload protection protects the jack to overload its limit.
  • Universal Joint System gives longer life than the traditional gear type system on most jacks.

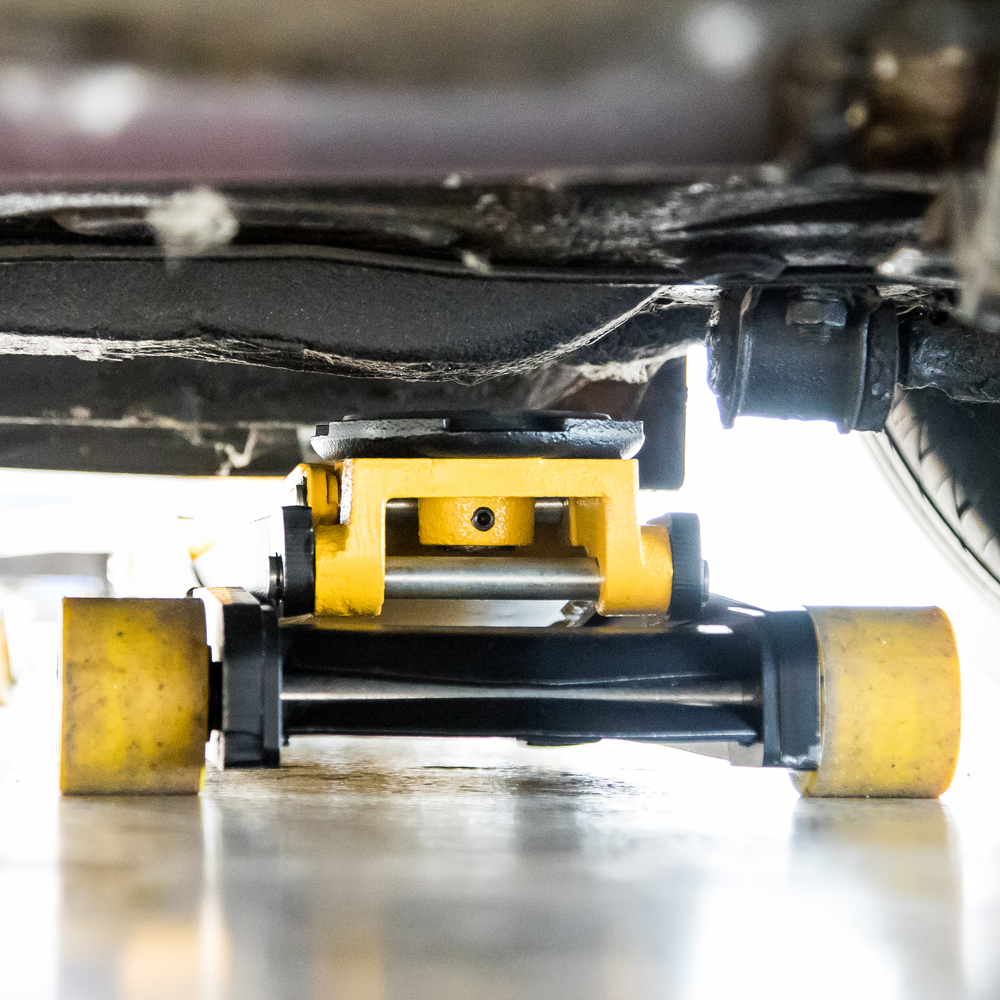

  • 63 mm ultra low profile design.

TECHNICAL SPECIFICATIONS

Capacity: 1350 Kg
Min height: 65 mm
Max height: 505 mm
Weight: 54 kg

See Drawing above

A: 65 mm
B: 505 mm
C: 440 mm
E: 1260 mm
F: 110 mm
I: 60 mm
J: 58 mm
L: 1257 mm
W: 399 mm
H: 170 mm


DOWNLOADS :

Download the latest manual and spareparts overview
