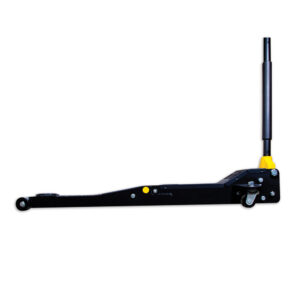

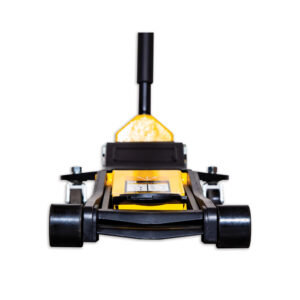

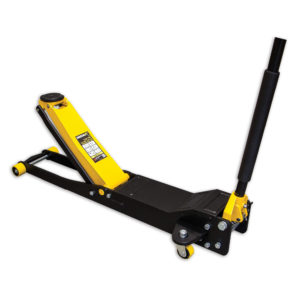

2902301 – 2 Ton ultra low profile service jack

In Stock

Description

2 TON

  • PU Wheels give easy and silent movement and protects the the workshop floor.
  • Unique Magic Lift design offers Super fast lifting speed with only 1 stroke to the lifting point.
  • Rubber lift pad prevents any scratching of vehicle chassis.
  • Soft foam handle protection prevents accidental damage to the vehicle’s bodywork.
  • Air vent valve plug automatically eliminates air in the hydraulic unit.
  • Overload protection protects the jack to overload its limit.
  • Universal Joint System gives longer life than the traditional gear type system on most jacks.
  • 63 mm ultra low profile design.

TECHNICAL SPECIFICATIONS

Capacity: 2000 Kg
Min height: 63 mm
Max height: 508 mm
Weight: 52,5 kg

See Drawing above

A: 63 mm
B: 508 mm
C: 445 mm
E: 1320 mm
F: 125 mm
I: 60 mm
J: 58 mm
L: 1078 mm
W: 349 mm
H: 175 mm

DOWNLOADS :


Download the latest manual and spareparts overview
