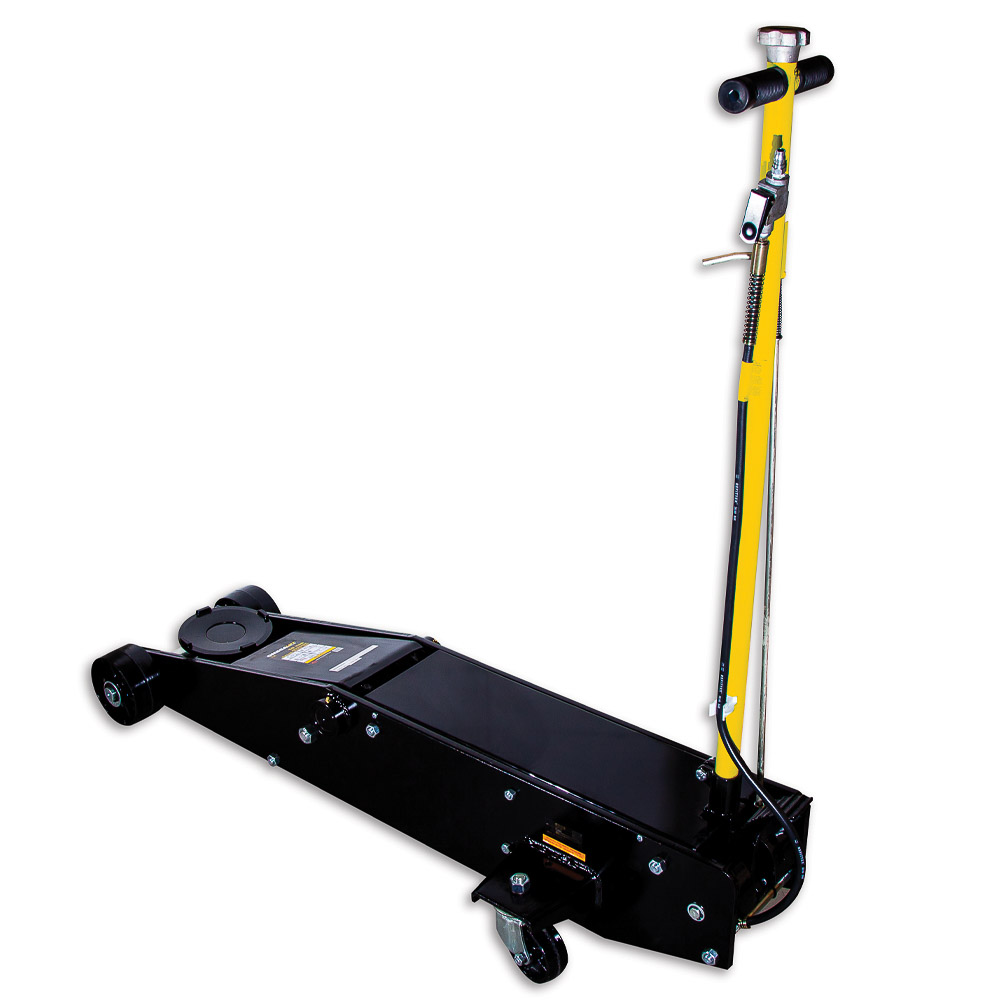

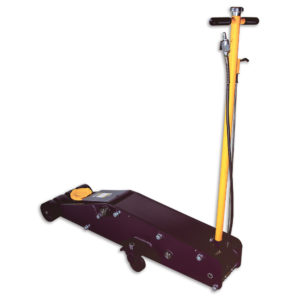

Description
10 TON
- Long chassis, 1390 mm
- Double piston system for fast lifting speed till lifting point
- Heavy duty metal wheels last longer.
- Universal Joint System gives longer life than the traditional gear type system on most jacks.
- Can be used in 3-ways by air, handle or foot pedal
TECHNICAL SPECIFICATIONS
Capacity: 10000 Kg
Min height: 178 mm
Max height: 686 mm
Weight: 163 kg
See Drawing above
A: 178 mm
B: 686 mm
C: 508 mm
E: 1069 mm
F: 188 mm
I: 150 mm
J: 100 mm
L: 1390 mm
W: 507 mm
H: 324 mm
