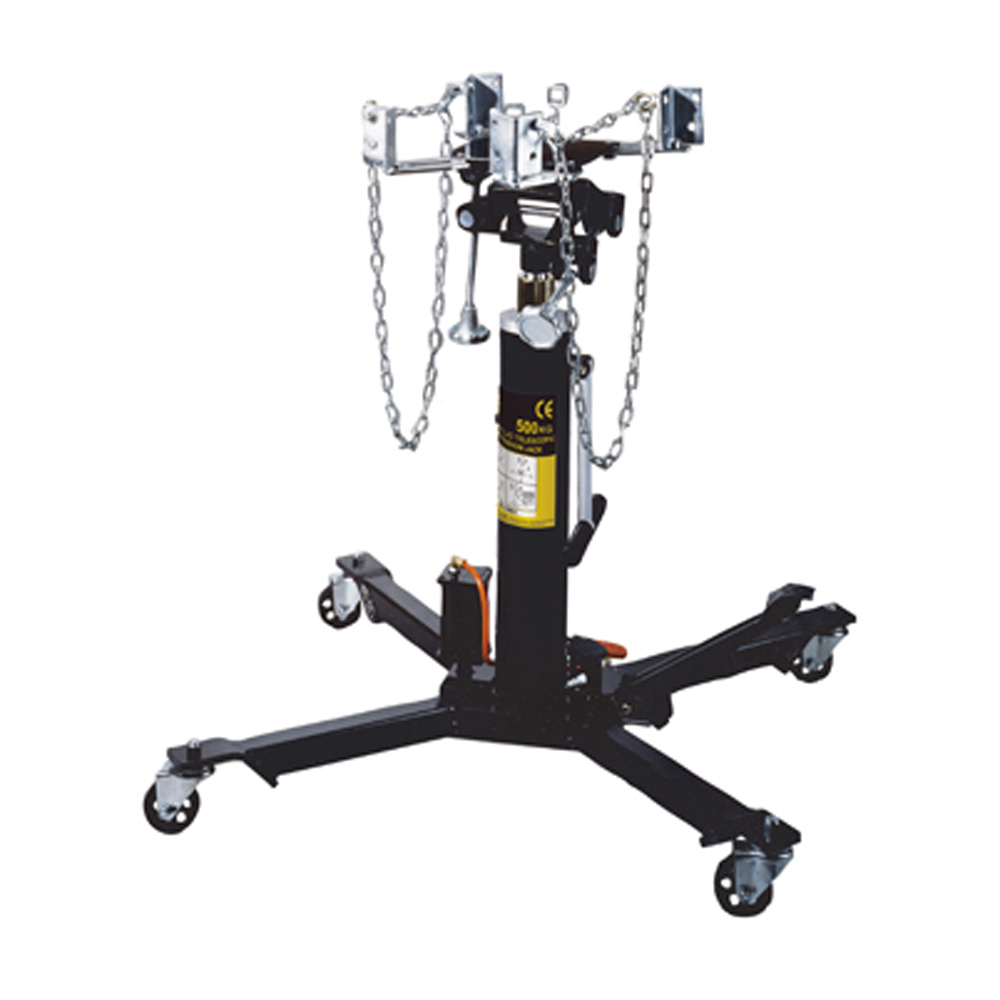

41001 – 500 Kg Transmission jack, telescopic

In Stock

Description

500 KG

  • Telescopic
  • Manual air-operated
  • Working air pressure 8-14 bar

TECHNICAL SPECIFICATIONS

Capacity: 500 kg
Min height: 1016 mm
Max height: 2026 mm
Weight: 81,5 kg

See Drawing above

A: 1016 mm
B: 2026 mm
C: 1010 mm
C1: 490 mm
C2: 520 mm
D: 55 mm
E: 35 mm
F: 47 mm
G: 79 mm
L: 840 mm
W: 903 mm

DOWNLOADS :

Download the latest manual and spareparts overview
