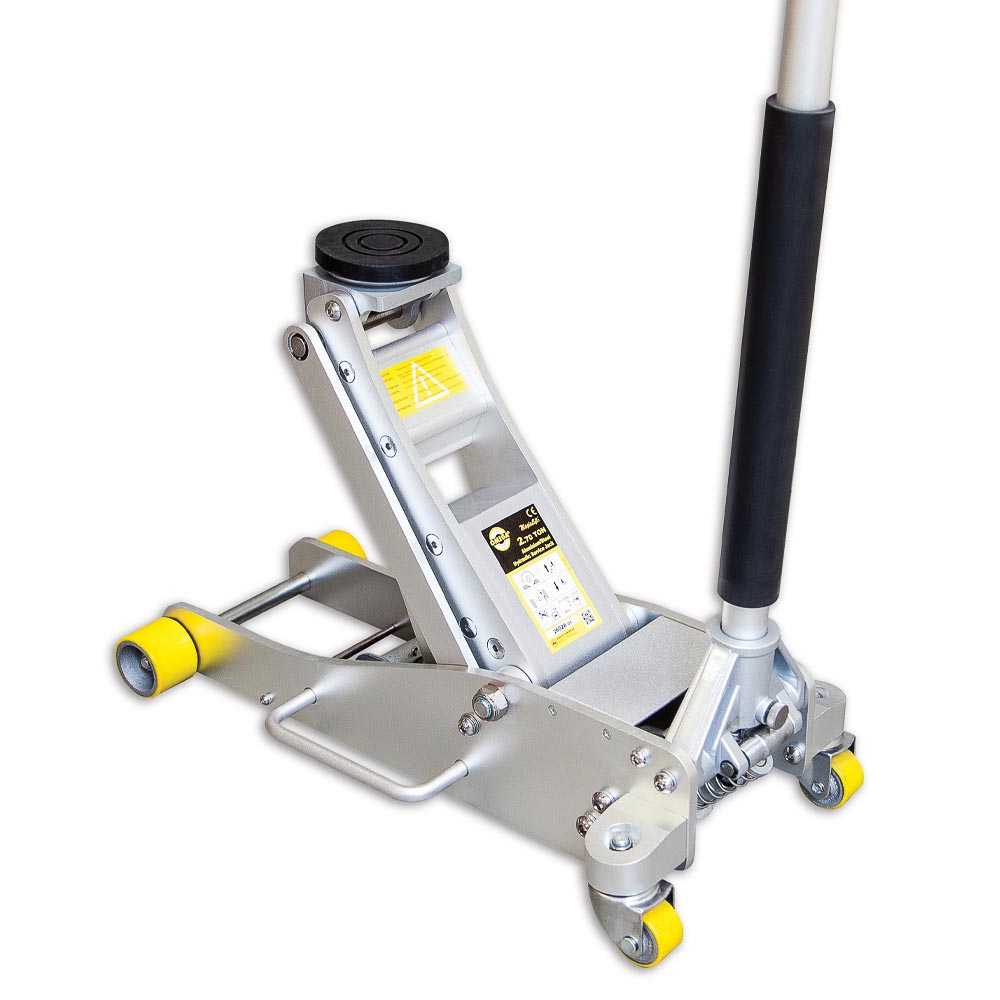

2602801 – 2,7 Ton aluminum service jack

In Stock

Description

2,7 TON

  • PU Wheels give easy and silent movement and protects the workshop floor.
  • Unique Magic Lift design offers Super fast lifting speed with only 1 stroke to the lifting point.
  • Rubber lift pad prevents any scratching of vehicle chassis.
  • Soft foam handle protection prevents accidental damage to the vehicle’s bodywork.
  • Air vent valve plug automatically eliminates air in the hydraulic unit.
  • Overload protection protects the jack to overload its limit.
  • Universal Joint System gives longer life than the traditional gear type system on most jacks.
  • Lightweight, only 26 kg.

TECHNICAL SPECIFICATIONS

Capacity: 2700 Kg
Min height: 95 mm
Max height: 470 mm
Weight: 26 kg

See Drawing above

A: 95 mm
B: 470 mm
C: 375 mm
E: 1210 mm
F: 99 mm
I: 65 mm
J: 49 mm
L: 717 mm
W: 332 mm
H: 158 mm

DOWNLOADS :

Download the latest manual and spareparts overview
