Description
300 KG
- Pit jack
- Magic Lift, super fast lifting speed
- Saddle can be used in 2-ways
- Foot pedal
- Supporting device to support hub available as option (M9409)
TECHNICAL SPECIFICATIONS
Capacity: 300 kg
Min height: 1280 mm
Max height: 2105 mm
Weight: 31 kg

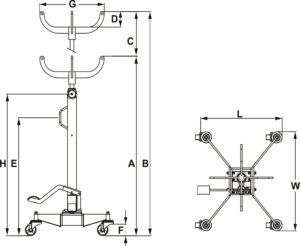

See Drawing above
A: 1280 mm
B: 2105 mm
C: 825 mm
D: 100 mm
E: 900 mm
F: 76 mm
G: 315 mm
L: 575 mm
W: 543 mm
H: 1052 mm
