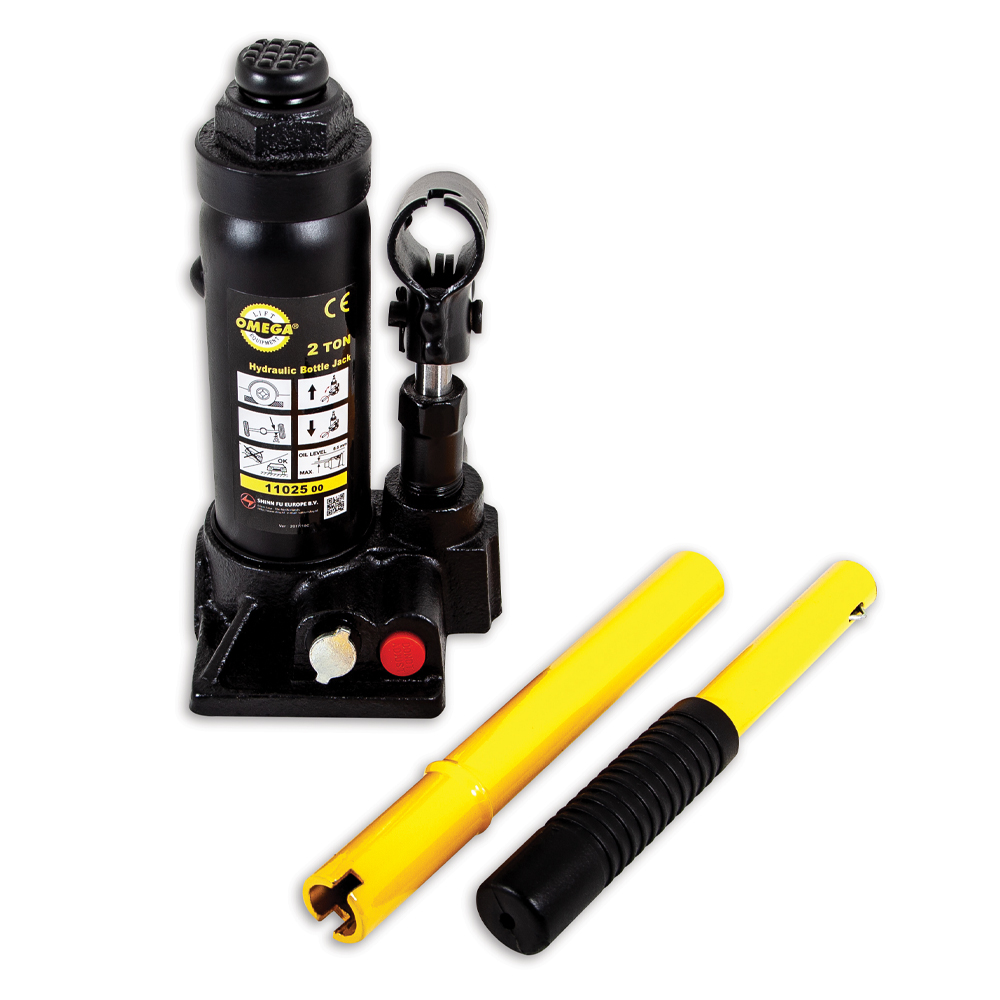

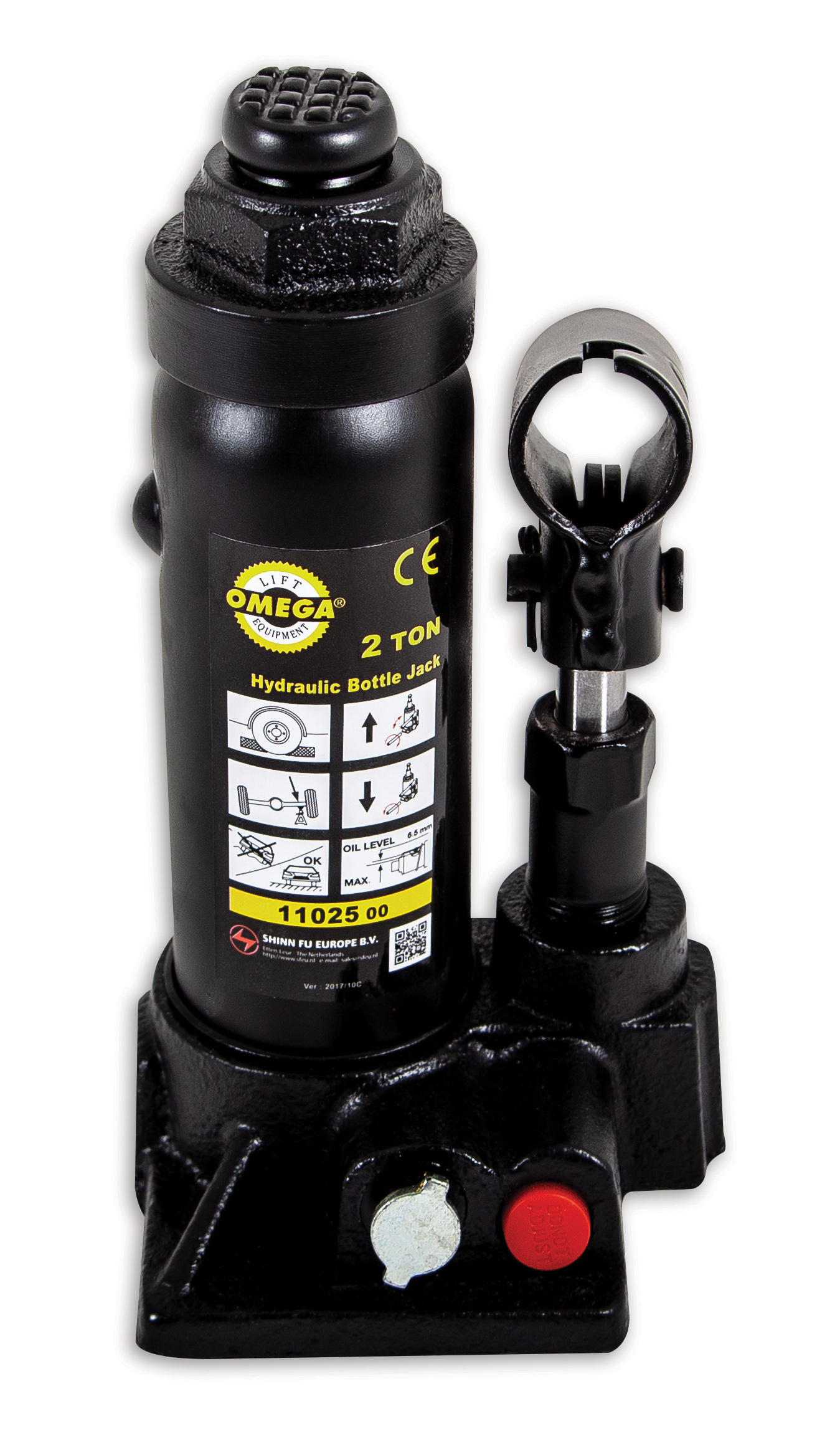

Description
2 TON
- Easy adjustable extension screw
- Rubber removable carry ring for easy storage of pump handle
- Safety valve against overloading
TECHNICAL SPECIFICATIONS
Capacity: 2000 Kg
Min height: 184 mm
Max height: 349 mm
Weight: 3 kg
See Drawing above
A: 184 mm
B: 349 mm
C: 110 mm
D: 55 mm
E: 340 mm
F: 25 mm
L: 100 mm
W: 98 mm
